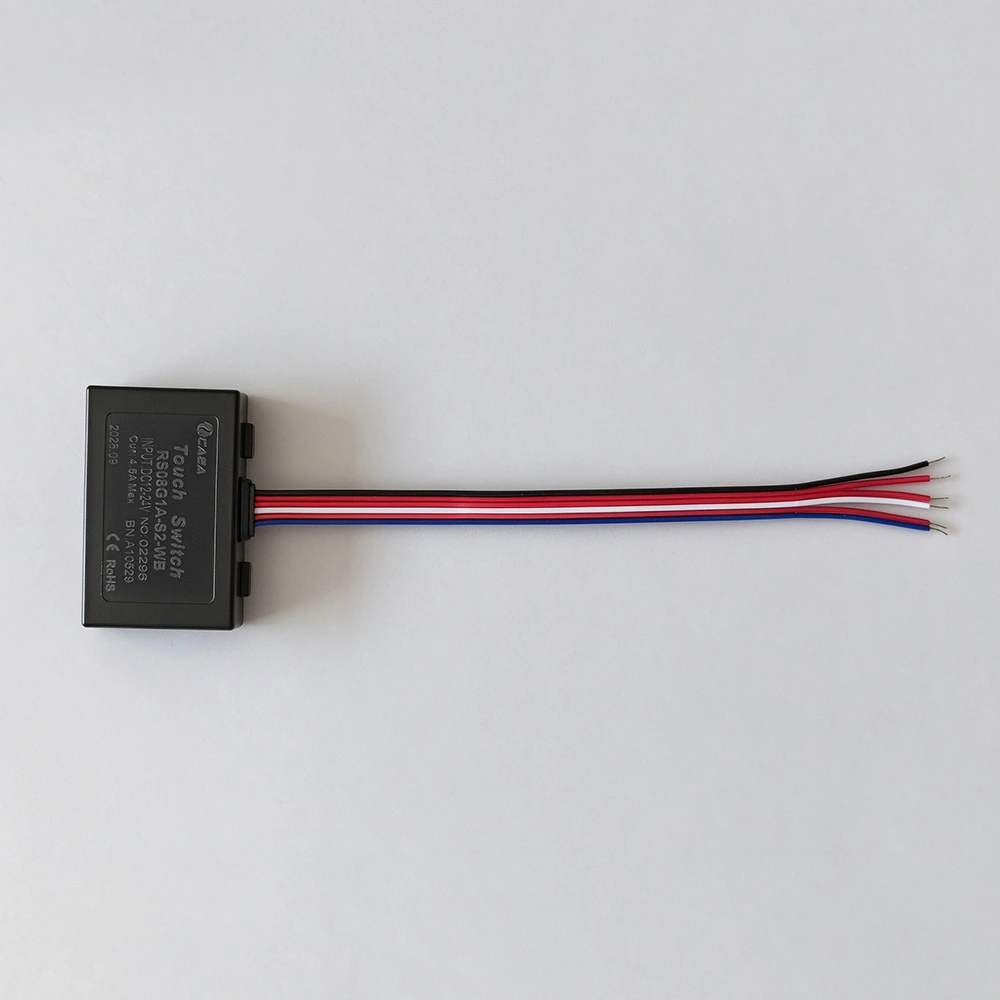

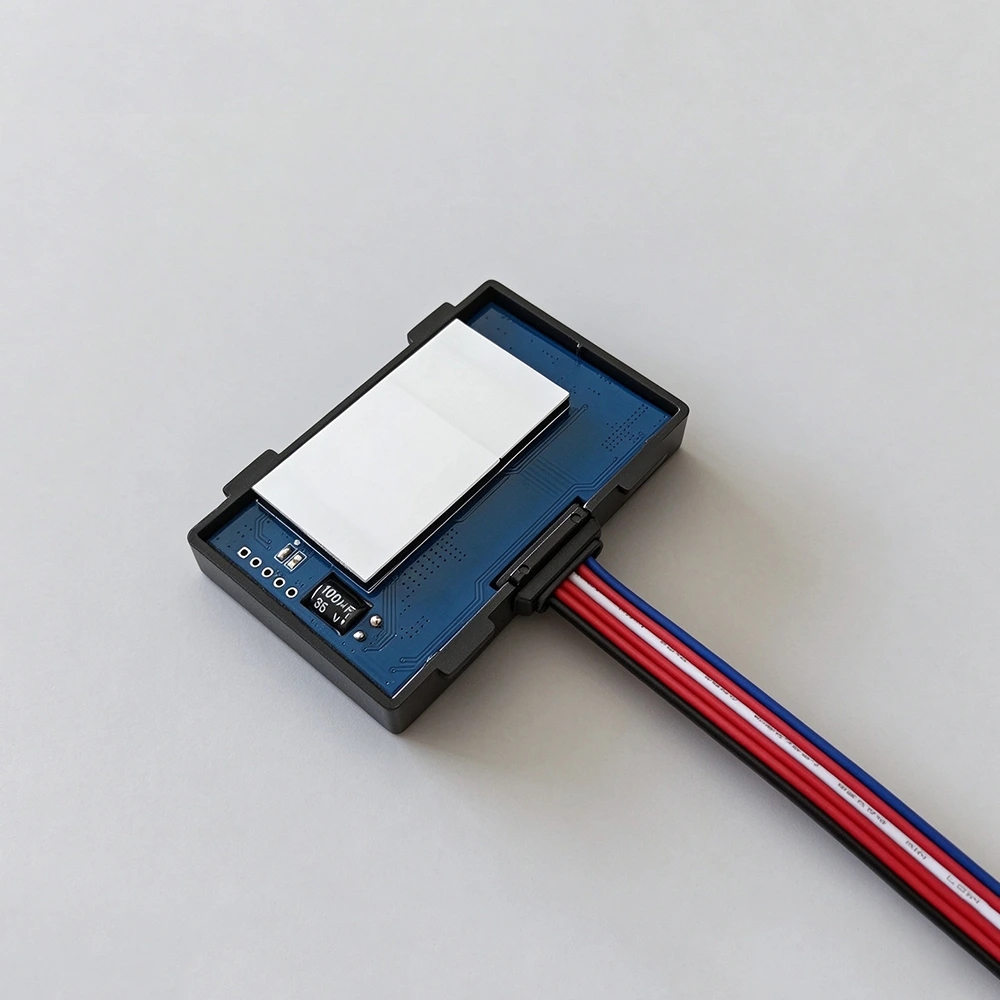

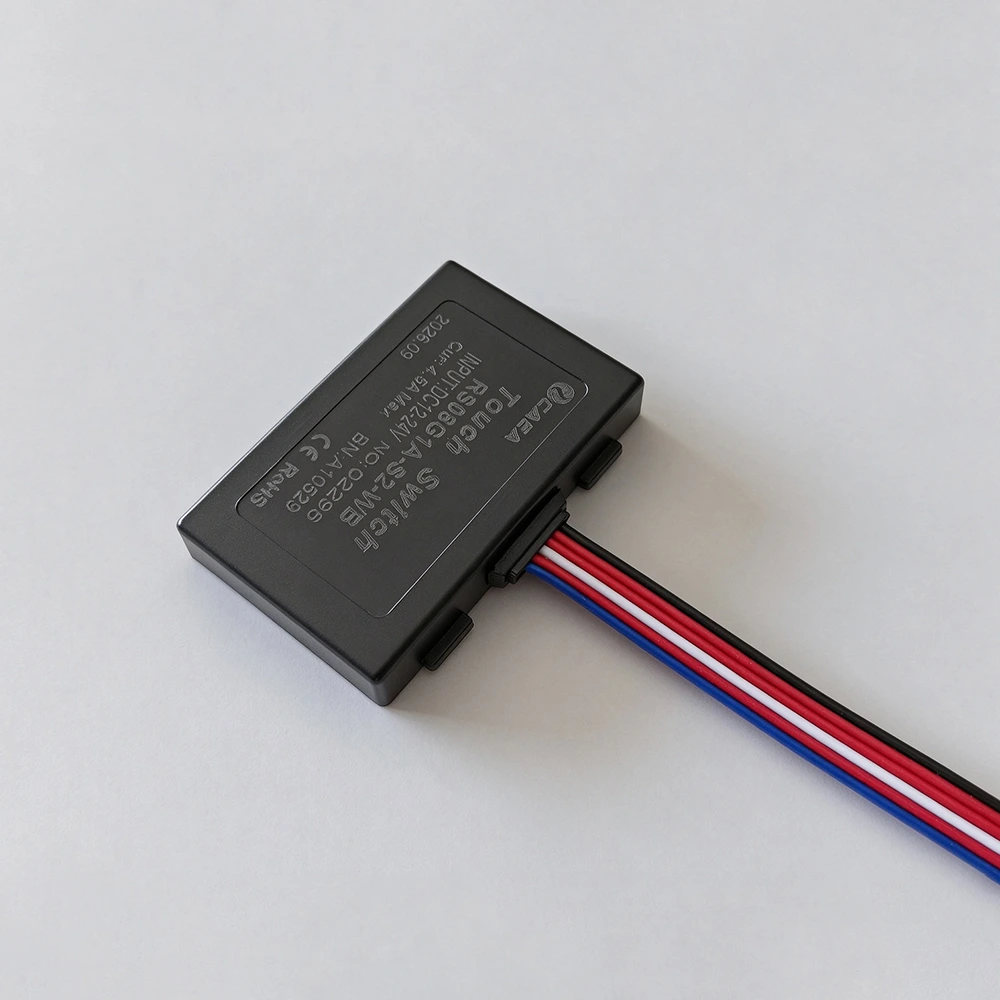

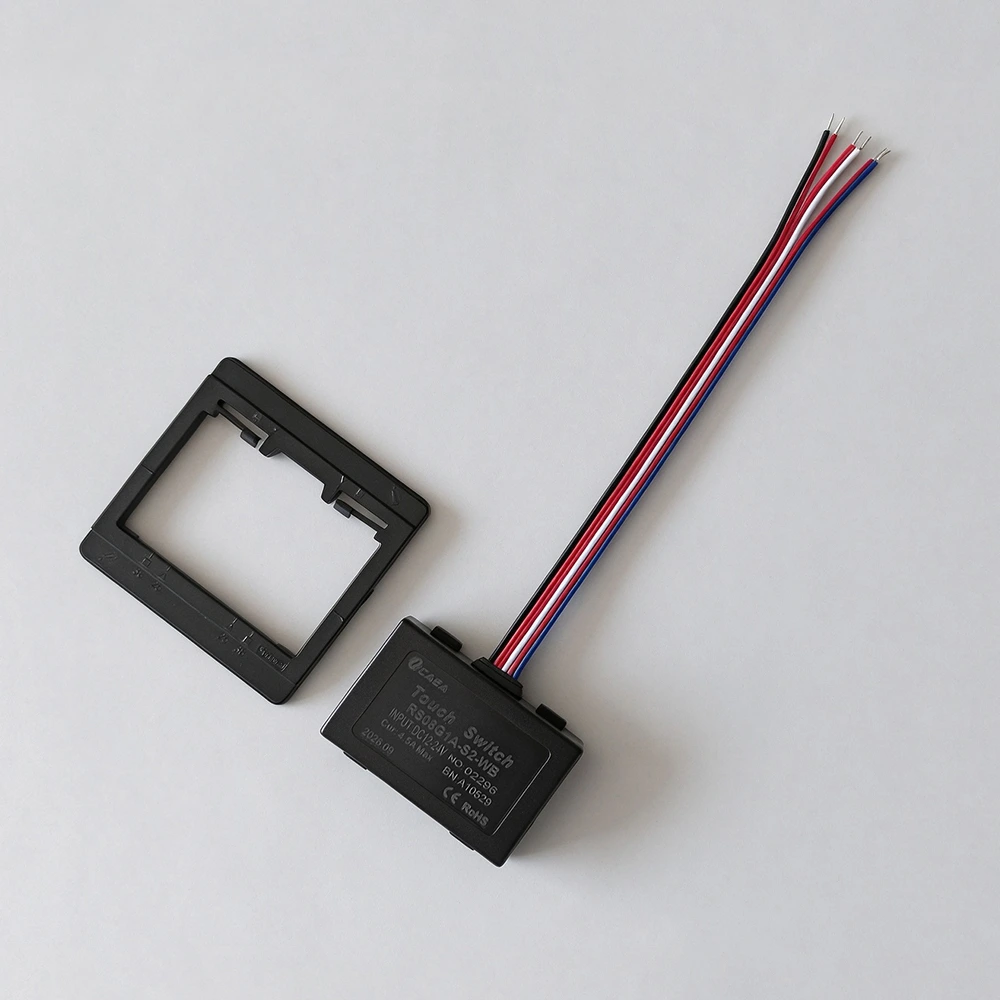

RS08G1A Single-Key Radar Human Presence Switch with Single-Color Stepless Dimming
This bathroom mirror touch sensor switch delivers reliable, moisture-resistant performance for daily use. Designed for smart mirrors, vanity lights and similar fixtures, it responds instantly to a light touch and supports long-term, high-frequency operation.
Other models in this series
Specifications
SKU RS08G1A-S2-WB
Operating Voltage DC12-24V
Standby Power 0.4W
Switching Current 5A
Switching Method PWM Gradient Dimming Switch
Control Type Human Presence Sensing / Touch Sensing
Operating Frequency 24GHz
Sensing Technology Motion Sensing, Presence Sensing
Sensing Distance 0.9m/1.2m/1.5m (3 levels adjustable)
Sensing Range Approx. 100°
Anti Fog Output yes
Delay Time Approx. 20s
Dimming Mode Stepless Dimming
Brightness Range 5%-100%
Operating Temperature -20°C~+50°C
Color Temp Range —
Product Weight 34g
Glass Thickness 3-6mm
Ry Primary Cat 116
This bathroom mirror touch sensor switch delivers reliable, moisture-resistant performance for daily use. Designed for smart mirrors, vanity lights and similar fixtures, it responds instantly to a light touch and supports long-term, high-frequency operation.
